Create/Modify Matching Rules

Matching rules are actually the different rules where, on the one hand, we will pair the objects from the authoritative and target sources and, on the other hand, define the actions to be performed on the different actions: creation, modification, deletion.

The matching rules therefore consist of five parts:

  • Rule for pairing two objects
  • Rule for comparing attributes between two paired objects
  • Rule for creating an object
  • Rule for modifying an object
  • Rule for deleting an object

Create/Modify pairing rules

A matching rule consists of defining the attributes of the authoritative source and the attributes of the target source that must match to stipulate that the object in the authoritative source corresponds to the object in the target source.

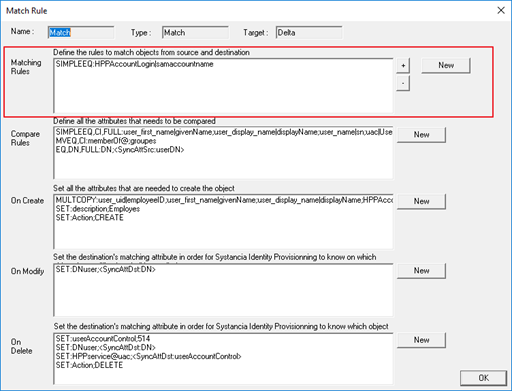

In the “Matching” rule, pairing rules are defined in the first box on the screen. Click “New ” to create a new rule. Select a rule and click “Modify” to modify it or “Delete” to delete it.

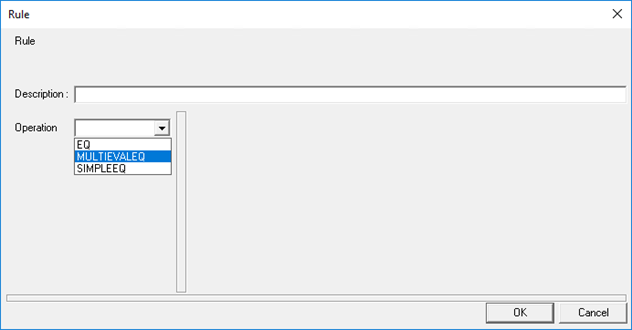

Matching rules are created from an operation. Refer to the List of available operations by rule page to choose the operation you need to meet your use case.

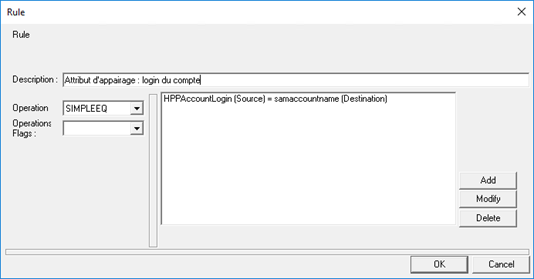

Example of a matching rule: For downstream provisioning (accounts and authorizations), we have configured object matching on account logins.

It is possible to configure multiple matching rules and define the order in which they are applied.

Create comparison rules

A comparison rule consists of defining the attributes of the authoritative source and the attributes of the target source that will be compared with each other in order to define the changes to be made.

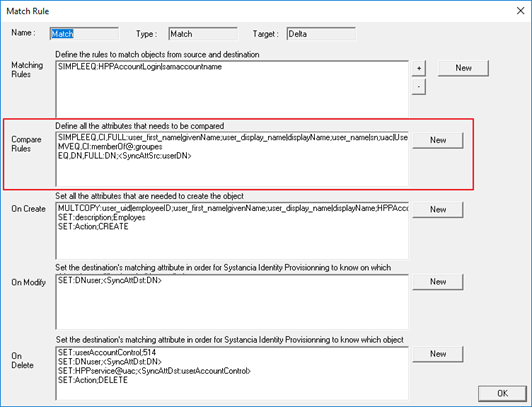

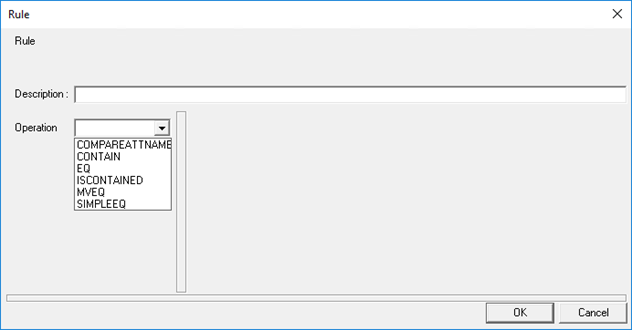

In the “Matching” rule, the comparison rules are defined in the second box on the screen. Click “New ” to create a new rule. Select a rule and click “Modify” to modify it or “Delete” to delete it.

A comparison rule is created from an operation. Refer to the List of available operations by rule page to choose the operation you need to meet your use case.

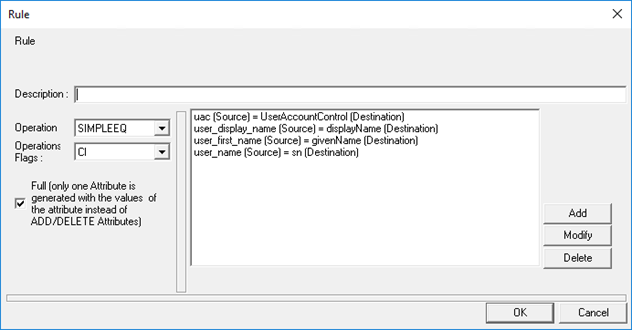

Example of a comparison rule: a list of single-valued attributes is compared between the two sources.

“Full” option: the results of a comparison rule can be exported and written in two ways for multi-valued attributes:

  • Option checked: if a change is detected between two attributes, the exported tag, which will bear the name of the target source attribute, will contain only the final values of the attribute. We do not know the details of the deleted values and the new values added, nor even the values that have not been modified.
  • Option unchecked: if a change is detected between two attributes, there may be two exported tags bearing the name of the target source attribute. A first tag containing an “ADD” sub-operation and a second tag containing a “DEL” sub-operation. The “ADD” sub-operation tag will only contain the new values to be added, and the “DEL” sub-operation tag will only contain the values to be deleted. In this case, we do not know if there are any unmodified values.

This option should be chosen based on the connector and the operations to be performed in the various creation, modification, or deletion rules.

It is possible to configure several comparison rules, all of which will be applied to all paired objects.

Create/Modify creation rules

A creation rule consists of defining, on the one hand, the value of the identification attribute that will be used when writing creations, and on the other hand, the attributes and their values that will be provisioned into the target source for all objects defined as creations. An object is defined as a creation when it is present in the authoritative source but not in the target source. Attribute values can be fed from attributes in the authoritative source; this is referred to as attribute mapping. Attribute values can also come from attributes configured in conversion rules or be specified using operations and keywords.

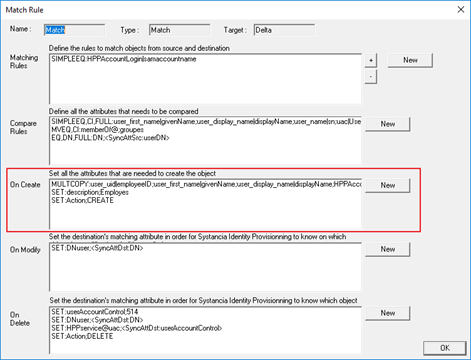

In the “Matching” rule, creation rules are defined in the third box on the screen. Click “New ” to create a new rule. Select a rule and click “Modify” to modify it or “Delete” to delete it.

A creation rule is created from an operation. Refer to the List of available operations by rule page to choose the operation you need to meet your use case.

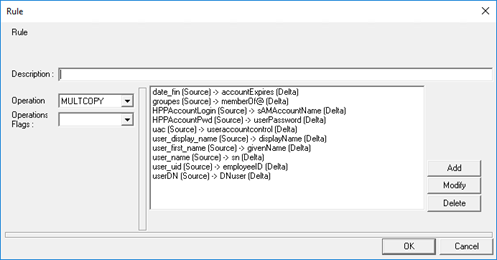

Example of a creation rule: Mapping of single-valued or multi-valued attributes between the authoritative source and the target source.

It is possible to configure several creation rules, all of which will be applied to all objects identified as being created.

Special case of directory-type repositories:

With the new directory connector, the objectClass attribute must be populated in the creation rule. To do this, create the objectClass attribute in a conversion rule applied to the source, with the values corresponding to the object to be created:

  • for a user-type object: Top, Person, organizationalPerson, user
  • for a security group: Top, Group

Example of configuration in SIP:

Format obtained in the output sync.xml file:

Recommendation

Check in the directory the values of the objectClass attribute carried by a similar object, to make sure you use the correct values.

To provision an account's password in a directory, the attribute to populate is unicodePwd.

Active Directory expects in unicodePwd a value encoded in UTF-16 and transmitted in binary form: the connector performs this conversion itself, both on creation and on modification. Provide the password in plain text in the rule, without prior encoding. The “password” nature of the value is preserved when attributes are copied.

Attention

Active Directory only accepts writing unicodePwd over an encrypted connection. The repository must therefore be configured in LDAPS (port 636 by default) as soon as passwords must be set or modified, and the connector's service account must have the right to reset the password of the objects concerned.

Note

If objectClass is not populated, the connector applies by default, for a user, top, person, organizationalPerson and user on Active Directory, or top, person, organizationalPerson and inetOrgPerson on OpenLDAP. Do not rely on these values: always populate objectClass explicitly, as indicated above.

Create/Modify modification rules

A modification rule consists of defining, on the one hand, the value of the identification attribute that will be used when writing the modifications and, on the other hand, optionally defining the attributes and their values that will be provisioned into the target source on all objects defined for modification. It should be noted that, in objects defined for modification, the results of the comparison rules are automatically specified in the modification rule.

In the “Matching” rule, the modification rules are defined in the fourth box on the screen. Click “New ” to create a new rule. Select a rule and click “Modify” to modify it or “Delete” to delete it.

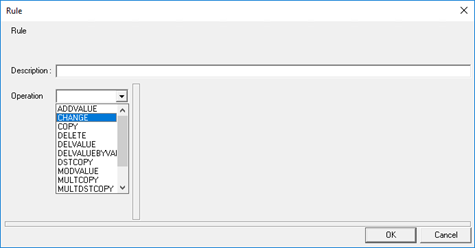

A modification rule is created from an operation. Refer to the List of available operations by rule page to choose the operation you need to meet your use case.

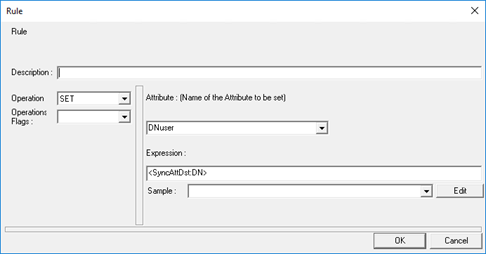

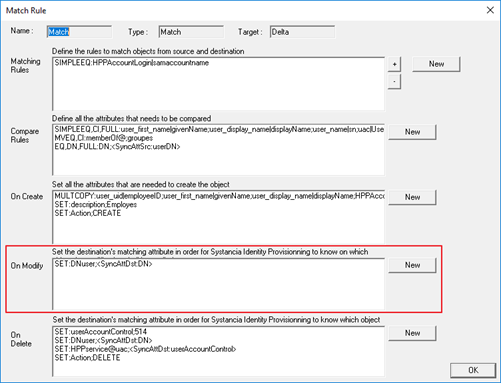

Example of a modification rule: Definition of the identification attribute of the object to be modified in the target source (directory). The “DNuser” attribute is specified using an expression that uses the “SyncAttDst” keyword to retrieve the value of the DN attribute in the target source.

Create/Modify deletion rules

A deletion rule consists of defining, on the one hand, the value of the identification attribute that will be used when writing deletions, and on the other hand, optionally, the attributes and their values that will be fed into the target source on all objects defined for deletion. Attribute changes on objects defined for deletion are only possible when there is no actual deletion of the object. An object is defined for deletion when it is present in the target source but not in the authoritative source. Consequently, attribute values can only come from attributes configured in conversion rules or be specified directly in deletion rules using operations and keywords.

Attention

As of version 7.1, the operations of a deletion rule can no longer refer to the target source. Since everything detected for deletion is necessarily in the target source, it is no longer useful to specify that the information will be searched there. Use the “SyncAttSrc” keyword or the COPY, MULTCOPY, etc. operations. During an upgrade, existing connectors are migrated automatically.

This migration takes place when the configuration is loaded: the engine applies the following mapping.

In a deletion rule, before 7.1 Replaced by
SyncAttDst (for example <SyncAttDst:attribut>) SyncAttSrc
DSTCOPY COPY
MULTDSTCOPY MULTCOPY

Nevertheless, correct your rules that use these keywords: the configuration displayed will then match what the engine executes. ⚠ The replacement applies to the text of the rule, regardless of case: it also affects keywords that contain these terms, such as SyncAttDstOperation or SyncAttDstType. Check these cases after an upgrade.

In the “Matching” rule, deletion rules are defined in the fifth box on the screen. Click “New ” to create a new rule. Select a rule and click “Modify” to modify it or “Delete” to delete it.

A deletion rule is created from an operation. Refer to the List of available operations by rule page to choose the operation you need to meet your use case.

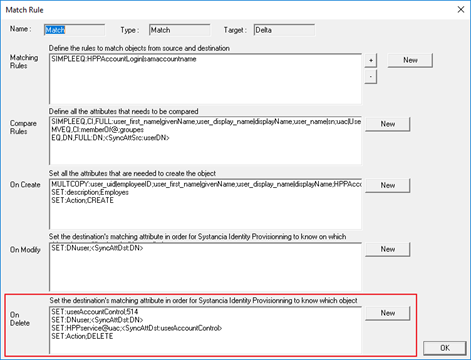

Example of a deletion rule: Definition of the identification attribute of the object to be deleted in the target source (directory). The “DNuser” attribute is specified using an expression that uses the “SyncAttSrc” keyword to retrieve the value of the DN attribute in the target source.

It is possible to configure multiple deletion rules, all of which will be applied to all objects identified for deletion.
