Monitoring of Mediation Controllers¶
Attention
This section is specific to CyberElements Bastion infrastructures.
From the “Server Statistics” menu in the “System” console:

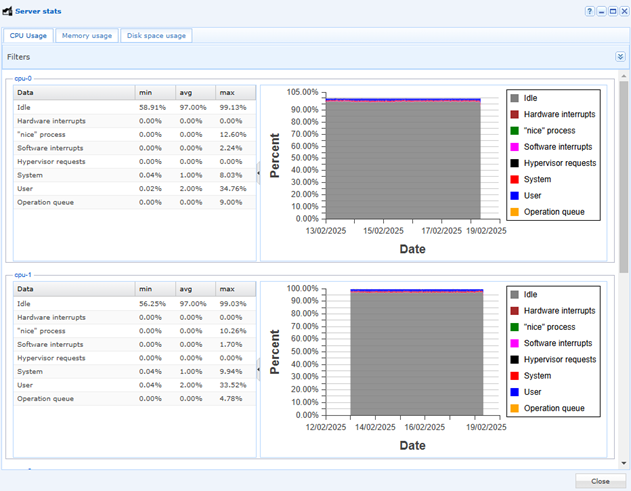

The dashboard provides information on CPU, RAM, and disk space usage for Mediation Controller servers:
Below is a list of services that can be monitored:
| Service | Description | Comment |
|---|---|---|
| apache2 | The Apache HTTP Server | HTTP server of the administration console and the user portal |
| cleanroom-vault | Cleanroom Vault Alias rotation | Automatic rotation of the password vault passwords |
| cleanroom-xmlrpc-api | CleanroomGatewaysMngmt | Internal API for managing Edge Gateways, HTML5 Gateways and organizations, used by the administration console |
| collectd | Statistics collection and monitoring daemon | Collection of system statistics — installation prerequisite |
| cron | Regular background program processing daemon | Execution of scheduled tasks |
| gate-xmlrpc-api | GateApiXmlrpc | Internal API for managing the pairing tokens and certificates of Edge Gateways, used by the administration console |
| getty@tty1.service | Getty on tty1 | Login on the local console of the server |
| ipdiva | LSB: Start IPdiva services | Startup of all Mediation Controller services, including the SSL Router |
| ipdiva-hostmanager | IPdiva Hostmanager Service | Remote control of the server configuration (network, system settings) |
| ipdiva-logger | IPdiva Logger Service | Collection of the logs of the various product components |
| ipdivasafe-emails | IpdivaSafeEmails | Sending of notifications and reports by email |
| ipdivasafe-tasks | IpdivaSafeTasks | Execution of background tasks (reports) |
| networking | Raise network interfaces | Configuration of the network interfaces |
| ntpsec.service | Network Time Service | Time synchronization, on which the timestamps of logs depend |
| postgresql | PostgreSQL RDBMS | Parent service of the PostgreSQL instances: it does nothing itself, the instance is postgresql@15-main |
| postgresql@15-main | PostgreSQL Cluster 15-main | Database containing the product configuration and logs (standalone architecture) or the logs of the base technical platform (cluster architecture) |
| rsyslog | System Logging Service | System logging (/var/log/syslog and product logs) |
| snmpd | Simple Network Management Protocol (SNMP) Daemon. | SNMP agent, for monitoring by a third-party tool |
| ssh | OpenBSD Secure Shell server | Remote SSH connection to the server, for its administration (service installed by openssh-server) |
| sysstat | Resets System Activity Logs | Collection of system performance statistics (sar) |
| systemd-journald.service | Journal Service | systemd system journal |
| systemd-logind.service | User Login Management | Management of system login sessions |
| zope2.11.service | LSB: Start chrooted zope at boot time | Zope application server of the Mediation Controller technical platform |
